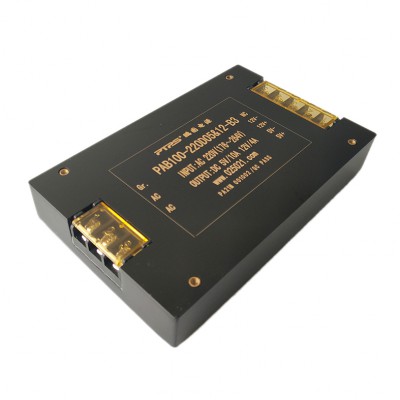

roduct Description

Features

l  Wide range of input voltage

l  Broadband noise filter of input

l  Surge suppress circuit of input

l  Comply with UL 1950, IEC950 safety regulation

l  Attractive outline design

l  Terminal connection method

l  Fast dynamic response

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

Input Characteristic

 Voltage range

220VAC (Normal Rated Value): 176 ~ 264 VAC

Output Characteristic

l  Voltage set-point accuracy ……………… ±2%

l  Line Regulation (Main) ……….........……… ±0.5%

l  Load regulation (Main) ………........…..........±0.5%

l  Cross regulation ………........….………........±3%

l  Output Current Limited ................................. 120% （Typ）

l  Output current …………………………………3-20A for optional

l  Output voltage …………………………………5-48V

l  Power ……………………………………………50-150W

General Characteristic

l  Switching frequency …………………… 100-200 KHz

l  Isolation resistance ……………………  200 MΩ

l   Isolation voltage

u  Input-output: >1500 VAC/MIN (Leakage current ＜5mA)

u  Input-case: >1500 VAC/MIN (Leakage current ＜5mA)

u  Output-case: >500 VDC/MIN

u  Main-Viice: >500 VDC/MIN

l   Environmental Characteristic

u  Substrate Working Temperature ………Industry: -25-+85℃
                                   Military I: -40-+85℃

                                   Military II: -55-+85℃

u  Storage temperature …………………… Industry: -45~ +105℃

                                   Military: -55-+105℃

Protection features

Input undervoltage protection         Output overcurrent protection

Output short circuit protection         Over temperature protection

Models

Mechanical Drawing & Pin definition
