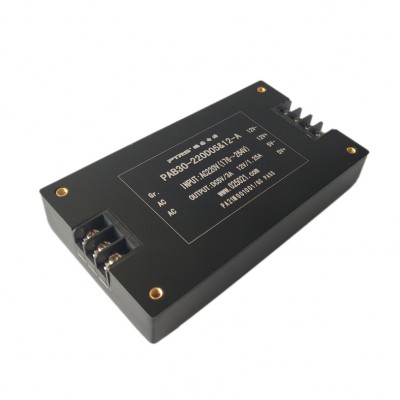

30-100W Module power supply 5v 12v 24v 48v
Product Description
Features
l Wide range of input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL 1950, IEC950 safety regulation
l Attractive outline design
l Terminal connection method
l Fast dynamic response
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176 ~ 264 VAC
Output Characteristic
l Voltage set-point accuracy ……………… ±2%
l Line Regulation (Main) ……….........……… ±0.5%
l Load regulation (Main) ………........…..........±0.5%
l Output Current Limited ................................. 120% （Typ）
l Output current …………………………………2-15A for optional
l Output voltage …………………………………5-48V
l Power ……………………………………………30-100W
General Characteristic
l Switching frequency …………………… 100-200 KHz
l Isolation resistance …………………… 200 MΩ
l Isolation voltage
u Input-output: >1500 VAC/MIN (Leakage current ＜5mA)
u Input-case: >1500 VAC/MIN (Leakage current ＜5mA)
u Output-case: >500 VDC/MIN
u Main-Viice: >500 VDC/MIN
l Environmental Characteristic
u Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
u Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Protection features
Input undervoltage protection Output overcurrent protection
Output short circuit protection Over temperature protection
Models
Input V. (Vac) | Input V. range (vac) | Output V.(V) | Output Curr. (A) | Ripple &noise pk-pk (mv) | Efficiency (Typ) | Models | |
SING | 220 | 176-264 | 05 | 15 | 80 | 83% | PAB75-220S05-A |
220 | 176-264 | 12 | 8.3 | 120 | 84% | PAB100-220S12-A | |
220 | 176-264 | 24 | 4.16 | 200 | 85% | PAB100-220S24-A | |
220 | 176-264 | 48 | 2 | 300 | 85% | PAB100-220S48-A | |
DUAL | 220 | 176-264 | 05&12 | 3&1.25 | 50&120 | 83% | PAB30-220D05&12-A |
Mechanical Drawing & Pin definition
