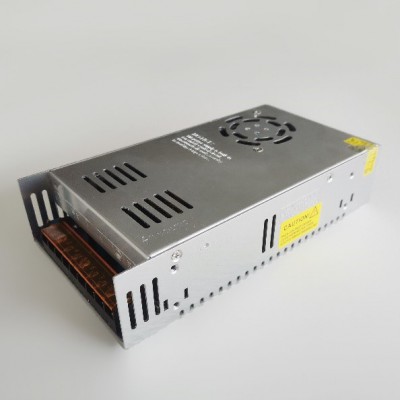

600W Power Supply
Application:
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instrument and equipment
Household appliances
Features:
Full voltage 90Vac~264 Vac, no switching
Comprehensive protection function: short circuit/overload/overvoltage
Design with full reference to safety regulations and EMC
All electrolytic capacitors with long-life at105℃
High efficiency, long life and high reliability, 100% full load aging test
Specification:
Item | S-600-5 | S-600-12 | S-600-15 | S-600-24 | S-600-36 | S-600-48 | ||
Output | Dc voltage | 5V | 12V | 15V | 24V | 36V | 48V | |
Output rated current | 100A | 50A | 40A | 25A | 6.9A | 5.2A | ||
Output current range | 0-100A | 0-50A | 0-40A | 0-25A | 0-6.9 A | 0-5.2A | ||
Rated output power | 500W | 600W | 600W | 600W | 600W | 600W | ||
Ripple&noise (Ta is the ambient temp.) | O < Ta 70℃ | 200mV | 200mV | 200mV | 240mV | 300mV | 400mV | |
Output adjustment range | 4.75-5.5V | 10.2-13.8V | 21.6-28.8V | 25.2-30.8V | 32.4-39.6V | 43.2-52.8V | ||
Voltage stabilization accuracy | ± 2% | |||||||
Source adjustment rate @-10-50℃ | ± 0.5% | |||||||
Load adjustment rate | ± 1% | |||||||
Input | Input voltage range | 90-132Vac/180-264Vac through the switch | ||||||
Frequency range | 47Hz~63Hz | |||||||
Efficiency @25 ° C | 83% | 86% | 86% | 88% | 88% | 88% | ||
Protection | Over power | 120%-150% OFF | ||||||
Over voltage | 5.75-6.75V | 13.8-16.2V | 18-21V | 31-36.5V | 41.4-46.8V | 55.2-64.8V | ||
Working Enviro-ment | Operating temperature and humidity | 0℃~50℃; 20%~90%RH No condensing | ||||||
Storage temperature and humidity | -20℃~85℃; 10%~95%RH No condensing | |||||||
Vibration | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X,Y, Z axes | |||||||
Insulation strength | Input-output: 1.5KVac/10mA: Input-Housing: 1.5KVac/10mA: Output-Housing: 0.5KVdc/10mA. The test time is 1min | |||||||
Insulation negative resistance | Input-output: 100M ohms; Input -- housing: 100M ohms; Output -- Housing: 100M ohms | |||||||
Others | Size | 215*115*49mm | ||||||
Design MTBE | 1533.4K hrs min. Telcordia SR-332(Bellcore) ; 301.7K hrs min. MIL-HDBK-217F (25℃) | |||||||
Comments
1. If no other specified, all specifications are tested at 230VAC, rated load, 25℃ ambient temperature.
2. The ripple noise is connected by 22# twisted pair wire, the bandwidth of oscilloscope is set to 20MHz, the Teck P3010 100M bandwidth probe is used, and the probe end is connected in parallel with 0.1uF polypropylene capacitor and 10uF electrolytic capacitor. The oscilloscope sampling mode is Sample.
Derating curve:
Installation size:
Note:
1.Screw into the power supply housing length L (as shown in the right picture).
1. Size unit: mm
2. The tolerance of unmarked dimensions shall be GB/T1804-M Class
3. Select the best module installation mode
AC input installation description:
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
1 | AC-L |
95 |
22-12AWG |
11Kgf/CM(MAX) |
2 | AC-N | |||
3 | GR |
DC output installation description:
Position | Fuction | Terminal | Wire Specificaitons | Max torque |
4 | V- | 95 | 22-12AWG | 11KgfCM(MAX) |
5 | V+ |
Instructions for installation and use:
1.During installation, please follow the above instructions for installation.
2.Before the installation is complete, please check and proofread the wiring on each terminal, make sure that input and output, AC and DC, positive and negative terminals, voltage and current values are correct, prevent the occurrence of reverse connection error, to avoid damage to the power supply and equipment.
3.Please use a multimeter to measure whether the live wire, neutral wire and ground wire are short-circuited and whether the output terminal is short-circuited before power-on.It is best to start no-load when energized.
4.Do not exceed the nominal value of the power supply, so as not to affect the reliability of the product.If you need to change the output parameters of the power supply, please consult the technical department of our company before using the power supply to ensure the use effect and reliability.
5.In order to ensure the safety of use and reduce interference, please ensure that the grounding terminal is reliably grounded (grounding wire greater than AWG18#.
6.In order to extend the life of the power supply, we can provide air duct design solutions.
7.Do not switch the power supply frequently, otherwise it will affect its life.
8.If the power supply fails, please do not repair it without permission. Please contact the customer service Department of our company as soon as possible.
Packing, transportation and storage:
1.Packaging: The product name, model, manufacturer's logo, manufacturer's quality department inspection certificate, manufacturing date, etc., shall be marked on the packing box.
2.Transportation: The packaging is suitable for transportation by car, ship, plane, train, etc. During transportation, it should be rainproof and loaded and unloaded in a civilized manner.
3.Storage: the product is not used should be placed in the packing box, storage environment temperature and relative humidity should meet the requirements of the product, there should be no corrosive gas or products in the warehouse, and no strong mechanical vibration, impact and strong magnetic field.The packing case should be padded at least 20cm above the ground and protected from water.If the storage time is too long (more than 1 year), it should be re-inspected by professional personnel before use.
